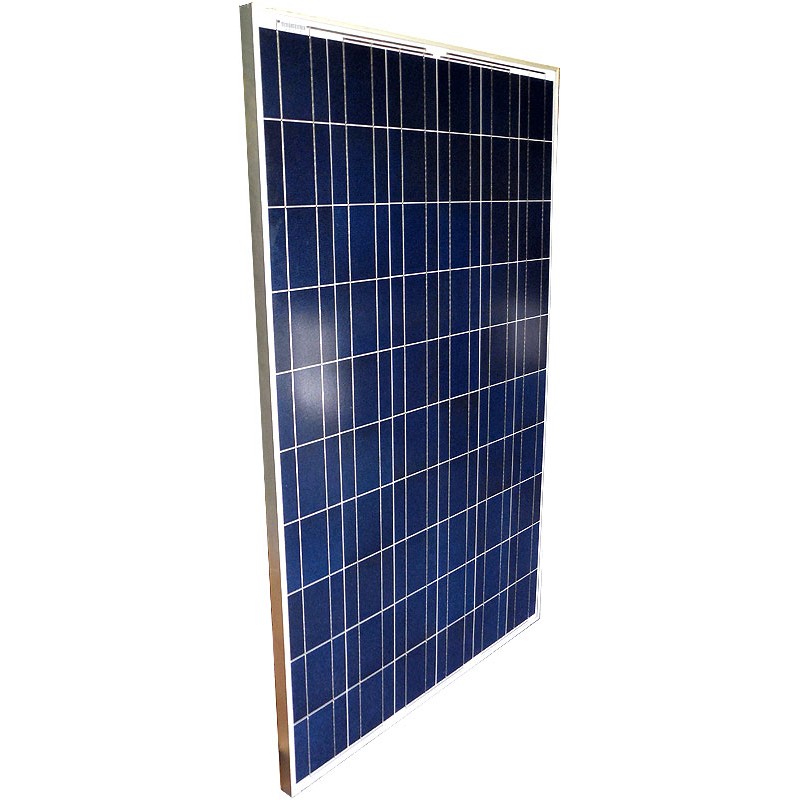

Sonali Panel
Sonali Panel
Thông tin chi tiết
- STC Power Rating 280W
- PTC Power Rating 232.7W 1
- STC Power per unit of area 13.5W/ft2 (145.3W/m2)
- Peak Efficiency 14.53%
- Power Tolerances -5%/+5%
- Number of Cells 72
- Nominal Voltage not applicable
- Imp 7.94A
- Vmp 35.3V
- Isc 8.53A
- Voc 44.75V
- NOCT data not available
- Temp. Coefficient of Power -0.45%/K
- Temp. Coefficient of Voltage -0.152V/K
- Series Fuse Rating 15A
- Maximum System Voltage 1000V
Mechanical Characteristics
- Type Monocrystalline Silicon
- Output Terminal Type Multicontact Connector Type 4
- Frame Color Clear
- Length 58.3in (1,482mm)
- Width 51.2in (1,300mm)
- Depth 1.7in (42mm)
- Weight 55.1lb (25kg)
- Installation Method Rack-Mounted
Warranty and Certifications
- 80% Power Output Warranty Period 25yrs
- 90% Power Output Warranty Period 10yrs
- Workmanship Warranty Period 5yrs
- Compliances data not available
- CSI Listed No
