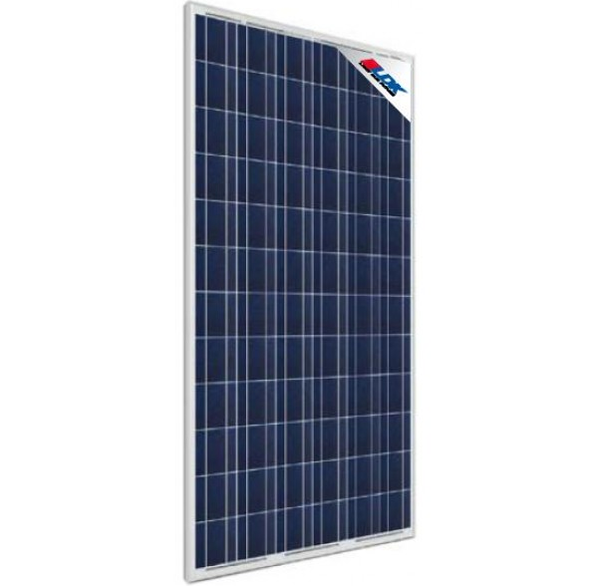

LDK Panel

LDK Panel

Thông tin chi tiết

WHY LDK SOLAR MODULES • Industry leading module power output warranty • International quality, safety and performance certifications • Modules manufactured in ISO 9001 certified factories • High-reliability with guaranteed 0/+5W peak power classification WARRANTIES • 10 years for product defects in materials & workmanship • 12 years for 90% of warranted minimum power • 25 years for 80% of warranted minimum power CERTIFICATES • IEC: IEC 61215, IEC 61730 (1&2), conformity to CE • UL1703 2002/03/15 Ed:3 Rev: 2004/06/30 • ULC/ORD-C1703-01 second edition 2001/01/01 • UL and Canadian standard for safety flat-plate • ISO9001:2008 Quality Management System • CEC Listed: modules are eligible for California rebates • PV Cycle: voluntary module take back and recycling program

Electrical Characteristics

Watts (STC)	290 W
Watts (PTC),	No
Maximum Power (Vmp)	36.5 V
Maximum Current (Imp)	7.95 A
Open Circuit Voltage (Voc)	44.4 V
Short Circuit Current (Isc)	8.52 A
Power Tolerance	0~+5%
Module Efficiency	15.27%

Mechanical Characteristics

Cell Technology	Polycrystalline
Cell Size	156×156mm
Cells Per Module	72
Dimension	195899440mm
Weight	28.3000
Frame Material	Anodized Aluminum
Module Color	Silver Frame
Moduel Connector	MC4 or Compatible
Junction Box	IP65 rated
Output Cable	No

Operating Conditions

Maximum System Voltage	1000VDC (EU) /600VDC (US)
Operating Temperature	– 40 °C to + 85 °C
Maximum Series Fuse	20A
Max Snow Load	5400Pa ( 112 lb/ft2)
