ET Panel

Thông tin chi tiết

Description

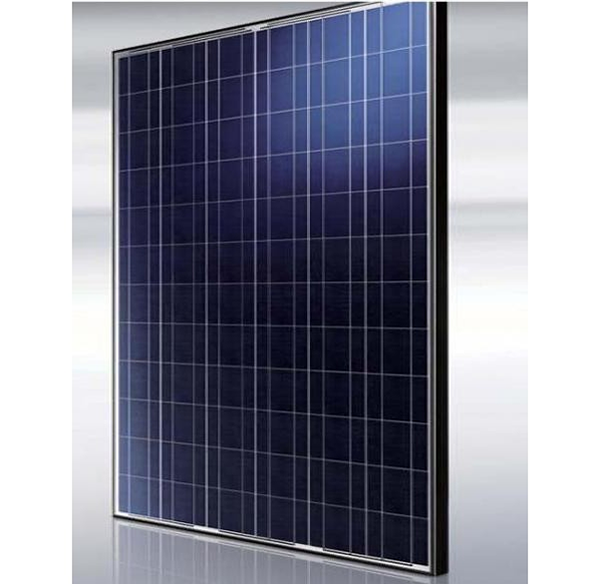

ET Solar Panel

Made in the USA, 208/240V AC Output

High Performance

  • 240W AC output
  • Up to 25% more energy production than conventional PV systems
  • Reduces losses due to shading and module mismatch

Smarter installation and monitoring

  • Flexible design and expansion
  • Up to 50% faster to install
  • No separate grounding or DC wires
  • Web-based, real-time monitoring of each module
Reliability and Safety
  • 10-year warranty on materials and workmanship
  • 25-year performance warranty
  • AC output inherently safer for rooftop PV
  • Anti-theft design

General Information

Manufacturer:
Model ID/Number:
ET-P660260WBAC
Product Line:
ET AC Module
Safety Ratings & Certifications:
C & US
1703
61215 Ed.2
61730
CEC
Compliance:
Buy American BAA

Mechanical Data & Components

Technology:
Poly
Panel Dimensions:
64.57 × 39.06 × 1.57 inches
Panel Weight:
47.59 pounds
Cells Per Module:
60
Frame Material:
Black
Backsheet Material:
White
Module Connector:
AC Module Connector
Output Cables:
AC Module Cable

Electrical Characteristics

System Rating:
260 Watts
Watts (PTC):
235.2 Watts
Max Power Voltage (Vmpp):
31.48 Volts
Max Power Current (Impp):
8.26 Amps
Open Circuit Voltage (Voc):
38.09 Volts
Short Circuit Current (Isc):
8.85 Amps
Max System Voltage:
600 Volts
Module Efficiency:
15.98%

Image result for ET panels
