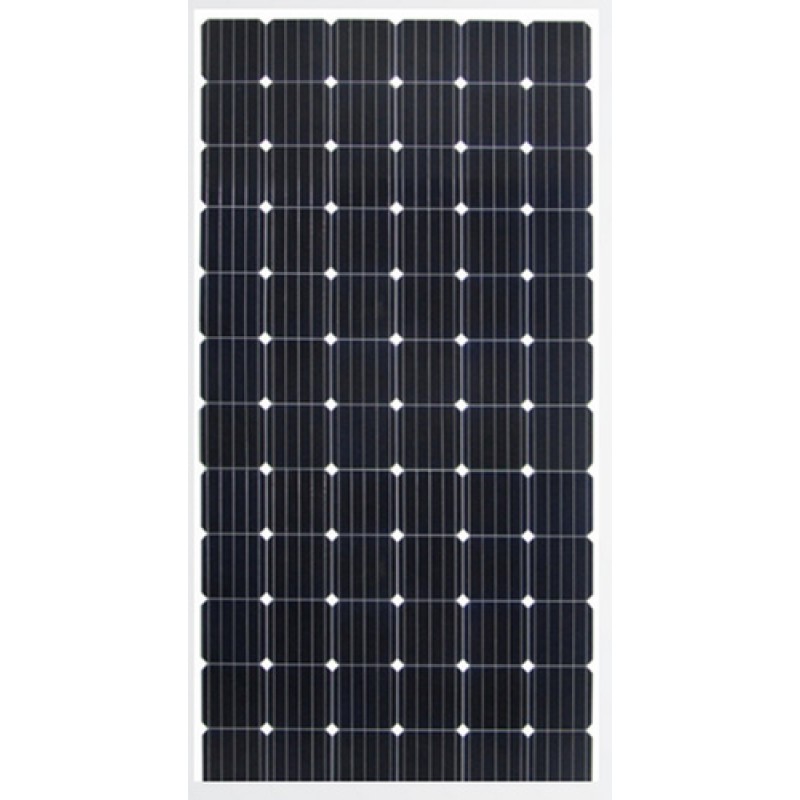

CSUN Panel
CSUN Panel
Thông tin chi tiết
| Our standard modules are designed, developed and manufactured for both residential and commercial, rooftop and ground-mounted, as well as on-grid and off-grid photovoltaic projects. |
| Quality of our products is the reason of CSUN's life. We select the best raw materials and conduct regular testing to ensure that they can meet our rigorous quality standards. Every module has been tested before delivery to make sure the efficiency tolerance is in a narrow range. Each link is strictly controlled to ensure the benefit of our customers. |
|
Features: 72 High-Efficiency Polycrystalline Solar Cells; Passing mechanical load test of 5400Pa according to IEC 61215(advanced test); Tested to withstand hails with maximum diameter of 25mm with impact speed of 23m/s; The high-transparency low-iron tempered glass allows maximum light permeability while enhancing stiffness and impact resistance; Integrated bypass diodes to protect the solar cell circuit from hot spots during partial shadowing; Our module technology avoids any problems of water freezing and warping; Black backsheet or black frame is also available. |
| Watts (STC) | 300W |
| Watts (PTC), | No |
| Maximum Power (Vmp) | 35.7V |
| Maximum Current (Imp) | 8.26A |
| Open Circuit Voltage (Voc) | 44.4V |
| Short Circuit Current (Isc) | 8.83A |
| Power Tolerance | ±3% |
| Module Efficiency | 15.24% |
| Cell Technology | Polycrystalline |
| Cell Size | 156×156mm |
| Cells Per Module | 72 |
| Dimension | 1956*990*50mm |
| Weight | 23.8000 |
| Frame Material | Anodized Aluminum |
| Module Color | Silver Frame |
| Moduel Connector | MC4 or Compatible |
| Junction Box | with 6 bypass diodes |
| Output Cable | No |
| Maximum System Voltage | 1000VDC (EU) /600VDC (US) |
| Operating Temperature | – 40 °C to + 85 °C |
| Maximum Series Fuse | 20A |
| Max Snow Load | 5400Pa ( 112 lb/ft2) |
