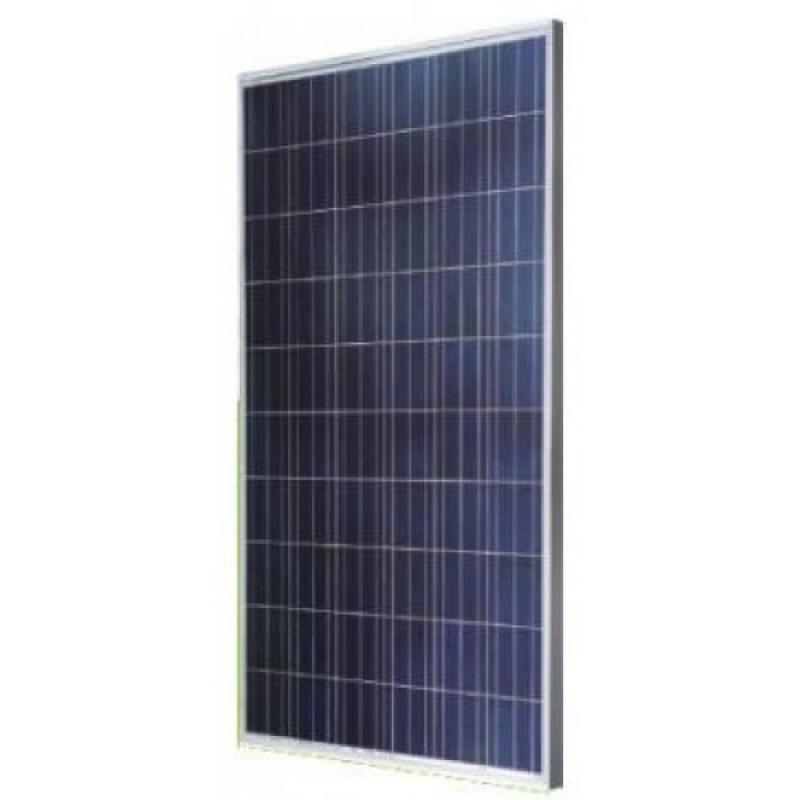

Astronergy polycrystalline 6612P series are produced with high quality materials and these 300 watt modules are suitable for both residential and commercial applications. Within the same power range and efficiency, cells are further sorted by current at maximum peak power in order to minimize losses caused by electric mismatch. Astronergy is the first large scale producer of high efficiency thin film PV modules in mainland China and it has been a trusted provider of high quality solar modules since its founding in 2006. The photovoltaic modules are tested individually before shipping to ensure the consistency of encapsulated cells and process reliability.
Mechanical Data & Components
Technology:
Poly
Panel Dimensions:
77.01 × 39.13 × 1.97 inches
Panel Weight:
51.7 pounds
Cells Per Module:
72
Frame Material:
Clear aluminum
Backsheet Material:
White
Module Connector:
MC4
Electrical Characteristics
System Rating:
300 Watts
Watts (PTC):
270.3 Watts
Max Power Voltage (Vmpp):
35.74 Volts
Max Power Current (Impp):
8.4 Amps
Open Circuit Voltage (Voc):
45.16 Volts
Short Circuit Current (Isc):
9.27 Amps
Max System Voltage:
600 Volts
Series Fuse Rating:
15Amps
Module Efficiency:
15.4%
